Cable Tray And Cover Profile Rolling Forming Machine

Cable Tray And Cover Profile Rolling Forming Machine
Cable Tray And Cover Profile Rolling Forming Machine Cable Tray And Cover Profile Rolling Forming Machine Cable Tray And Cover Profile Rolling Forming Machine Cable Tray And Cover Profile Rolling Forming Machine Cable Tray And Cover Profile Rolling Forming Machine Cable Tray And Cover Profile Rolling Forming Machine

Gambar besar :  Cable Tray And Cover Profile Rolling Forming Machine

Detail produk:
Tempat asal: CINA
Nama merek: ZTRFM
Sertifikasi: CE
Nomor model: Ztac
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: under discuss
Kemasan rincian: Telanjang dengan paket anti-minyak
Waktu pengiriman: 90 hari kerja
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 30 set per bulan
Kontak

Cable Tray And Cover Profile Rolling Forming Machine

Deskripsi
Menyoroti:

cable tray roll forming machine

,

cover profile forming machine

,

light keel roll forming machine with warranty

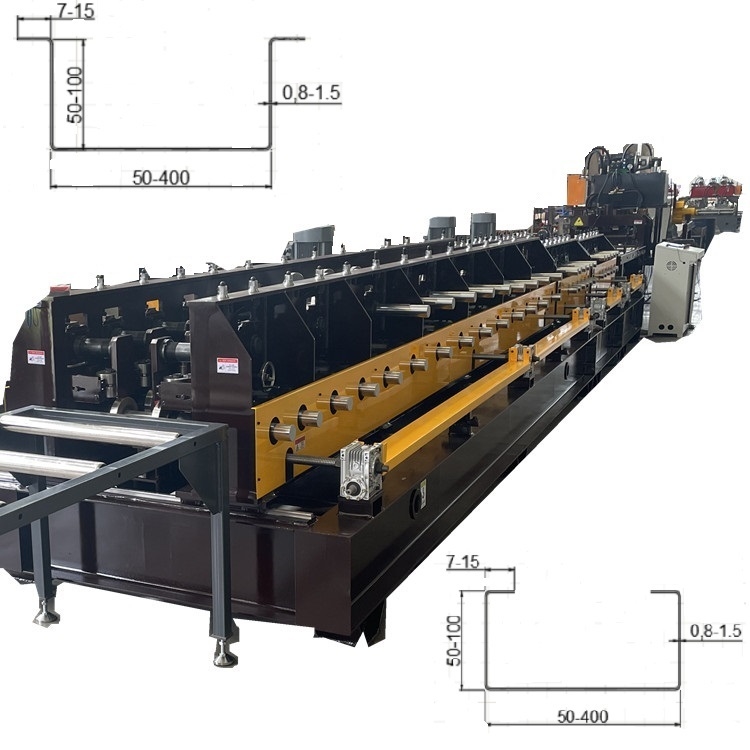

Cable Tray and Cover Profile Rolling Forming Machine
A cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are mechanical support systems that provide a rigid structural system for electrical cables, raceways, and insulated conductors used for electric power distribution, control, signal instrumentation, and communication.
Metal cable trays are made of galvanized steel, stainless steel, and aluminum. There are many sizes, here we take the small size from 50 to 400mm as an example to show how the machine is designed.
Reference Drawings
Cable Tray And Cover Profile Rolling Forming Machine 0 Cable Tray And Cover Profile Rolling Forming Machine 1 Cable Tray And Cover Profile Rolling Forming Machine 2
Machine Examples
This is for cable tray rolling forming machine:
Cable Tray And Cover Profile Rolling Forming Machine 3
This is for the cable cover profile rolling forming machine:
Cable Tray And Cover Profile Rolling Forming Machine 4
Machine Specifications
Parameter Specification
Coil thickness 0.8-1.5mm
Coil width 60-420 mm
Suitable Raw Materials Galvanized steel coil
Yield Strength ≤235Mpa
Length tolerance ± 1mm for 3000mm
Line Speed 8-16 m/min
Standard Configuration
  1. 3Ton Hydraulic decoiler set 1
  2. Leveling/cutting/punching unit set 1
  3. Main roll forming machine set 1
  4. Hydraulic station set 1
  5. Conveyor Belt system set 1
  6. Run out table set 1
Cable Tray And Cover Profile Rolling Forming Machine 5 Cable Tray And Cover Profile Rolling Forming Machine 6
Key Features
  • The decoiler is optional - you can choose either manual decoiler or hydraulic decoiler
  • Guiding system adjustable for different width of coil
  • Punching part mold adjustable for different width (each time 2 rows punching)
  • Higher speed available with additional punching molds
  • Before shearing and convey table solves problem of changing cutter for different sizes
  • Main rolling forming machine has longer shaft with frame along shaft for different sizes
  • Punching needles are easily adjustable at the back
Cable Tray And Cover Profile Rolling Forming Machine 7 Cable Tray And Cover Profile Rolling Forming Machine 8
This machine handles small sizes of cable tray (bottom width from 50 to 400mm). Larger sizes are available upon request. The cover machine width is also adjustable.
Note: For different sizes, you do not need to change the cutter blade even after shearing.
Video Reference

Label:

light steel keel roll forming machine,

metal stud and track roll forming machine,

t bar roll forming machine
