Z purline with multi-punching for RV bottom beam making machine

Gambar besar : Z purline with multi-punching for RV bottom beam making machine

Detail produk:

Tempat asal:	Cina
Nama merek:	ZTRFM
Sertifikasi:	CE
Nomor model:	Ztac

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	under discuss
Kemasan rincian:	Telanjang dengan paket anti-minyak
Waktu pengiriman:	60 hari kerja
Syarat-syarat pembayaran:	L/c, t/t
Menyediakan kemampuan:	30 set per bulan

Kontak

Z purline with multi-punching for RV bottom beam making machine

Deskripsi

Menyoroti:

CZ purlin roll forming machine with multi-punching

RV bottom beam making machine

Z purline roll forming machine for RV

Z Purline with Multi-Punching for RV Bottom Beam Making Machine

The Z purline with multi-punching for RV bottom beam making machine is designed to produce a specialized Z profile featuring more than 10 types of punching patterns and a 5-degree bend, specifically for RV bottom beams and car beam rolling applications.

Product Overview

Application

Machine Design

Production Process Flow

The complete production line process: 5T feeding rack → leveling machine → punching (8 sets of mold frames, ~45T, with 12 sets of interchangeable molds) → servo feeding → 18 sets of rolling forming (80mm spindle diameter) → straightening → hydraulic cutting → pneumatic automatic unloading. The entire process is fully automated.

Machine Components

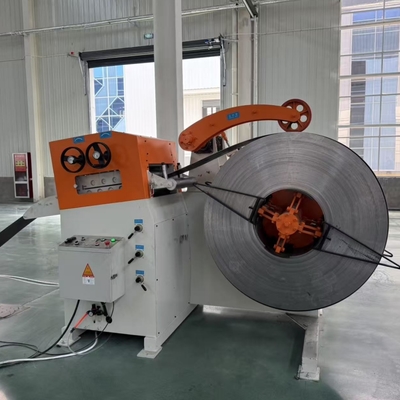

P1: 5 Ton Decoiler

Material rack: Active material feeding with hydraulic tensioning
Roll width: ≤ 200mm
Uncoiler load capacity: 5T
Coil inner diameter: φ508mm to φ1500mm
Leveling mechanism: Two roller clamping, seven roller leveling
Leveling roller material: High-quality 40Cr
Heat treatment: Surface high-frequency quenching
Motor power: 4KW
Hydraulic system power: 2.2KW

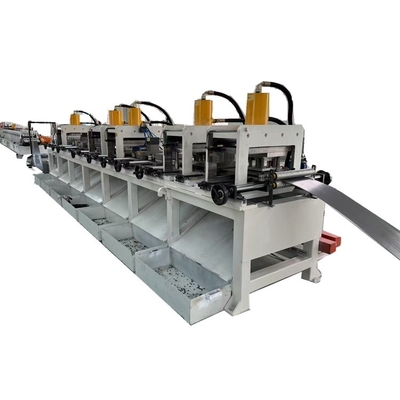

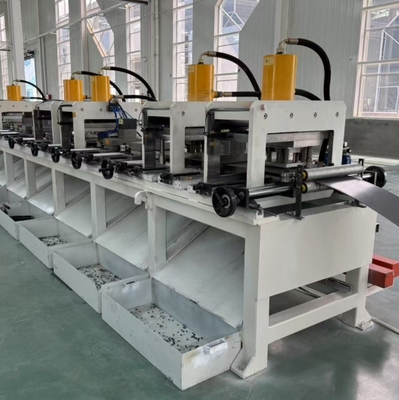

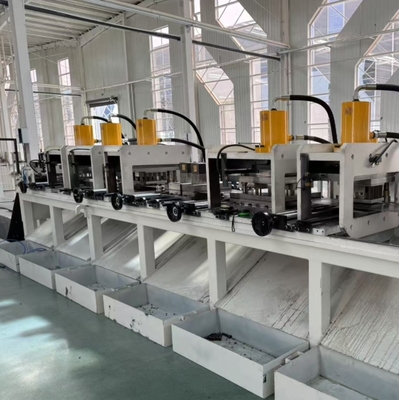

Part Two: Punching System

8 sets of front punching mold frames
12 sets of interchangeable molds (user-replaceable)
Template material: High-quality 45 carbon steel
Mold material: Cr12Mov or SDK11
Mold hardness: HRC58-62 after heat treatment
Hydraulic system power: 30KW
8 hydraulic punching workstations

Part Three: Main Rolling Forming System

Machine frame: Shot blasted/vibration treated profile steel with CNC milling
Guide feeding rack: Lateral handwheel with quenched guide rollers
18 sets of horizontal rollers with vertical auxiliary rollers
Roller material: Cr12MoV with vacuum heat treatment (HRC55-58)
Spindle: 85mm diameter 40Cr material with precision grinding
Main motor: 18.5KW with variable frequency speed control
Gear transmission with m=5 module hard tooth surface reducer
Straightening: 5 wheels (2 upper, 3 lower)

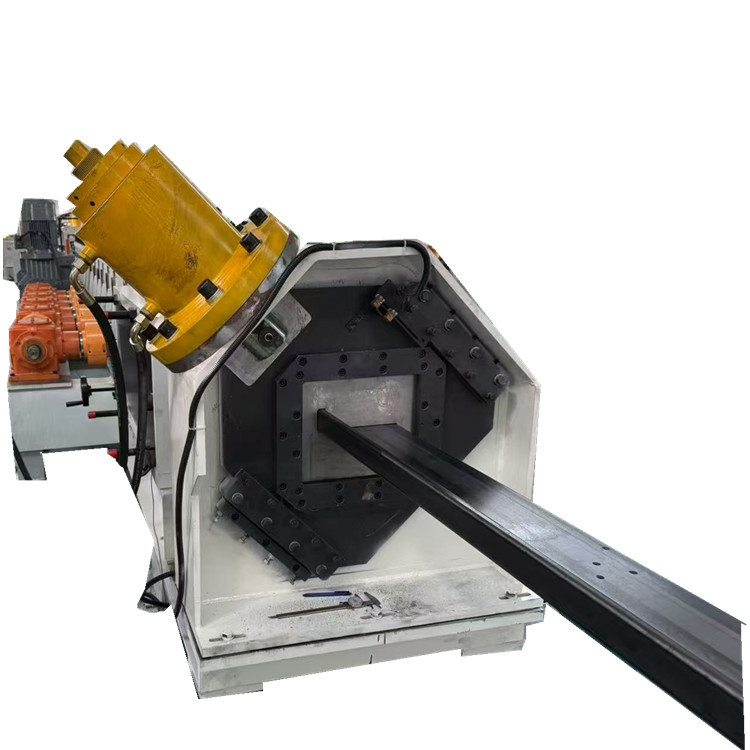

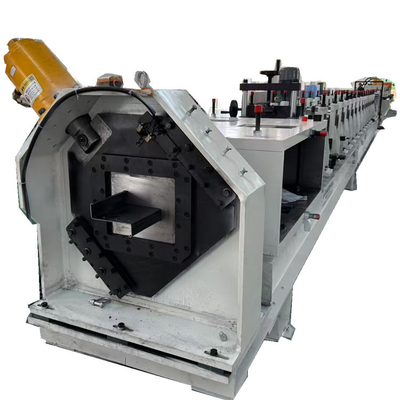

Hydraulic cut-off system: 45T capacity with 7.5KW power

Machine Operation Video
