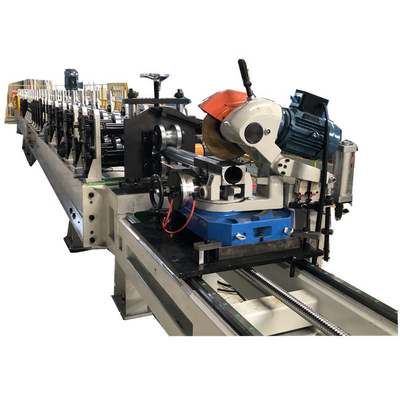

Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production

Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production
Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production

Gambar besar :  Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production

Detail produk:
Tempat asal: CINA
Nama merek: ZTRFM
Sertifikasi: SGS, CE
Nomor model: Ztac
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: under discuss
Kemasan rincian: Telanjang
Waktu pengiriman: 60 hari kerja
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 30 set per bulan
Kontak

Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production

Deskripsi
Menyoroti:

octagonal pipe roll forming machine

,

rolling shutter door tube machine

,

interlocked tube forming machine

Rolling Shutter Door Interlocked Tube Roll Forming Machine For Octagonal Pipe Production

Precision-built for octagonal & interlocked tube production, our Rolling Shutter Door Interlocked Tube Roll Forming Machine is engineered to mass-produce high-quality interlocked tubes for industries like construction, machinery, and transportation. Utilizing the roll forming principle, this machine creates durable, tightly connected tubes ideal for applications demanding structural stability.

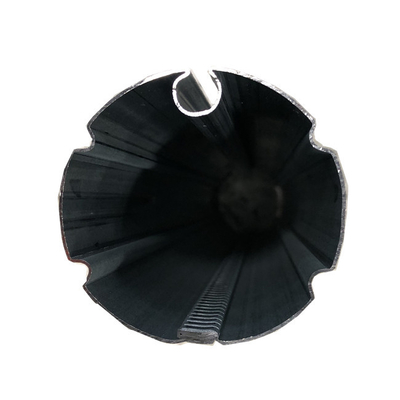

Wide Application of Interlocked & Octagonal Tubes

The interlocked tubes produced by this machine offer superior performance across multiple industries:

  • Construction Engineering:
    • Protective pipes for wires and cables with firm, tight connections
    • Drainage pipes with excellent compressive and tensile properties
    • Support and load-bearing parts for bridges and high-rise buildings
  • Mechanical Equipment: Robust frames and structural components
  • Transportation & Aerospace: Lightweight yet strong structural parts

Contact us for detailed drawing profiles of the tubes for your specific applications.

Core Forming Process & Machine Advantages

The machine transforms raw materials into interlocked tubes through a systematic, continuous process with key features:

  • Multi-Side Rollers: Ensure smooth, visually consistent interlock connections without burrs
  • Precise Shearing Options: Choose between disk shearing or cold disk shearing (servo motor controlled) for accurate length cutting
Detailed Machine Parameters
Parameter Category Details
Feeding Materials 0.60mm*W (width customizable), PPGI/PPGL, G250-350Mpa strength
Machine Frame Type Open-style individual structure with welded platform
Forming Stations 19 roller forming + 1 roller punching + 1 rectifying station
Main Shaft 45# Round Steel, heat-treated (HRC40-45), Φ70mm diameter
Rollers GCr15 ball bearing steel, quenched (HRC52-55C°) + 0.05mm chrome coating
Bearing ZWZ / HRB (Chinese brands)
Transducer Japan YASKAWA V1000
Operation System Operation cabinet + Emergency remote control unit
PLC & Encode Siemens PLC; Omron Encode (Japan)
Other Electrical Parts Schneider & Omron brands
See the Machine in Action

Request our working video to visualize the entire production process from material feeding to finished tube output.

Customize Your Solution

We can tailor the machine to your specific requirements including tube dimensions, material compatibility, or processing functions. Contact us to discuss customization options for your interlocked tube production line.
